GM1904

Advanced tungsten carbide matrix 20% improvement in erosion resistance over precious matrix

Only four blades for maximizing the JFA (junk flowed area)

Increase cuttings evacuations with available hydraulic flows

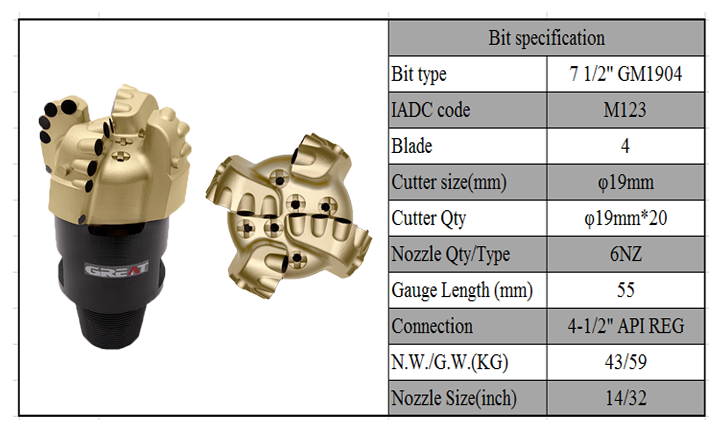

Bit specification

features

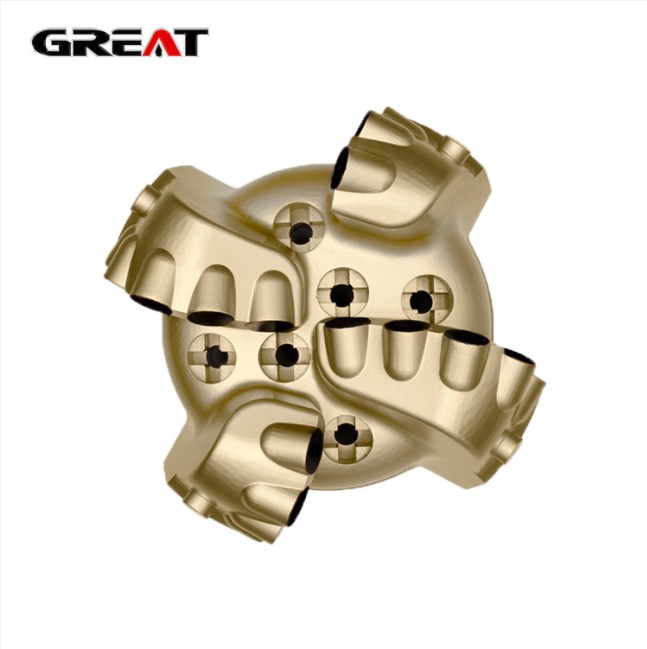

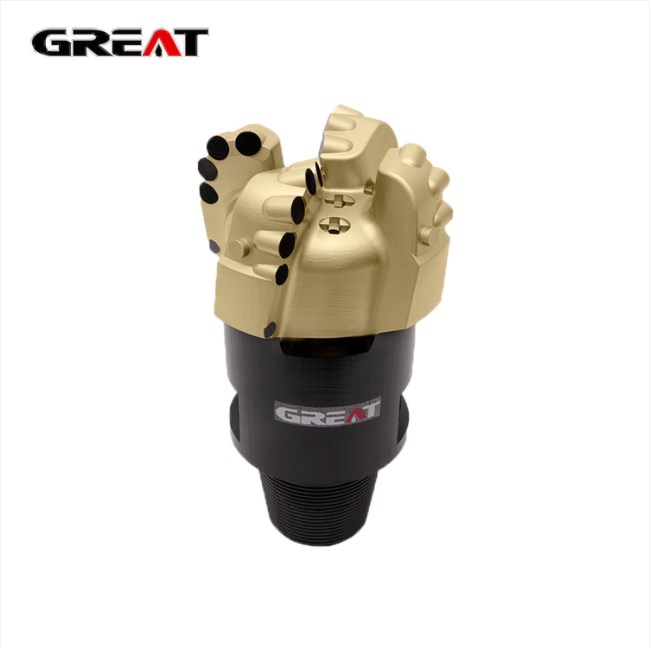

The industry’s most robust matrix body drill bit GM1904

Features



Advanced tungsten carbide matrix 20% improvement in erosion resistance over precious matrix

Only four blades for maximizing the JFA (junk flowed area)

Increase cuttings evacuations with available hydraulic flows

Provide dual cutter rows without sacrificing the aggressiveness of the bit with only 4 blades,acquiring desired ROP and bit durability without bit balling

Multi-optimizing force balance for cutting structure,Increasing the bit stability and cutting efficiency during drilling

Dynamic flow simulation technology is used for hydraulic design and optimizing the number and placement of nozzles to ensure optimum bottom hole flow patters and anti-balling.

The advanced GRT series cutters to endure frictional heat generated during the drilling process,improvements in cutters abrasion resistance maintains sharp drilling edge for a higher ROP

Option Features

Gauge length

Short:Improved bit steerability and tool face control for directional or horizontal drilling, reduce slide section by achieve builds more quickly.

Extend:Enhances bit stability and allows more area for gauge protection components, improves bole hole quality.



Active gauge

Protect the gauge and improved hole quality



PDC Cutters

Different features of PDC cutters can be chosen in different wells or formations for maximizing both drill efficiency and economic.
