How does a downhole motor work ?

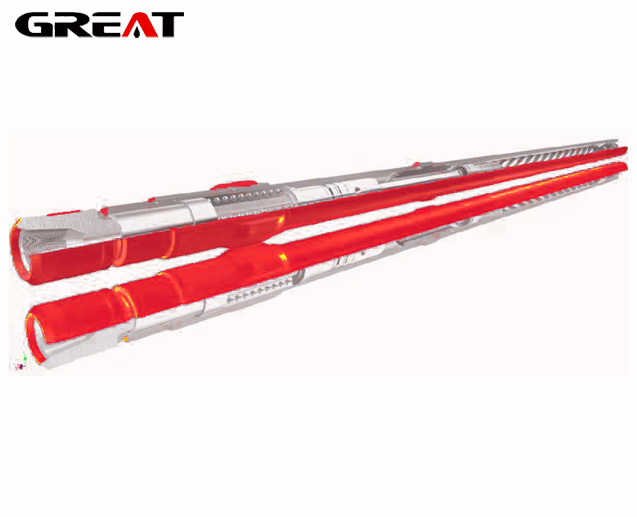

Mud stream from the outlet of mud pump flows through a by-pass valve into the downhole motor .This stream produces pressure loss between inlet and outlet of the motor to push the motor rotating around the stator’s axis,then transmits rotation speed and torque to the PDC bit or tricone bit by universal shaft and drive shaft to implement the well operation.
Power section in various lobes, stages and lead distance can be designed according to drilling parameters.
High Speed / Low Torque Power Section
Power section in this type is suitable to PDC bit, soft formation and directional drilling operation.
Medium Speed / Medium Torque Power Section

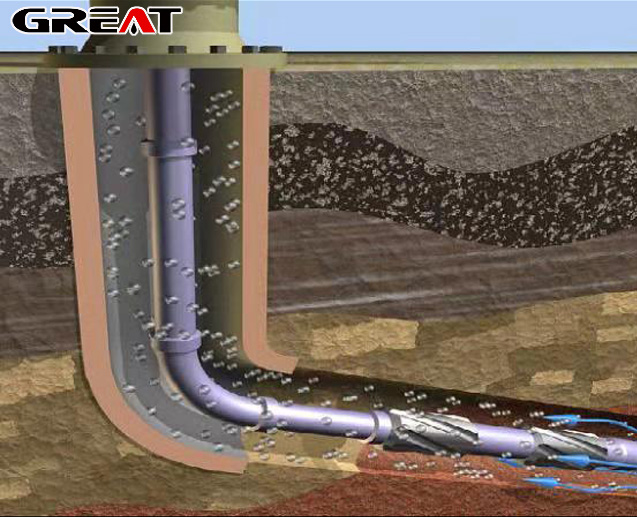

Motor with lobe 5:6 is commonly used in generally directional and horizontal drilling well.
For example, motor in 5:6 lobe can be used by matching with PDC bit or tricone bit for drilling rock.
Low Speed / High Torque Power Section
Motor with lobe 7:8 is commonly used in medium hard formation for directional drilling and horizontal drilling matching with PDC bit or tricone bit.
Our mainly sizes : 95mm ,102mm,120mm,127mm,165mm,172mm,244.5mm.
For more understanding technological parameters ,please donot hesitate to contact with our sales representative .
